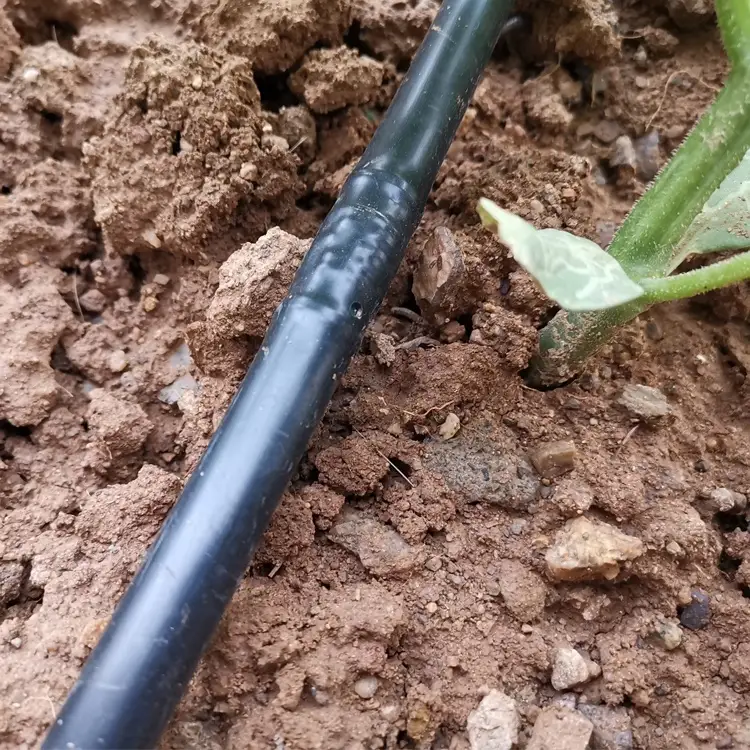

16mm PE Drip Pipe with Column Dripper, Compensating Emitter 1

16mm PE Drip Pipe with Column Dripper, Compensating Emitter 2

16mm PE Drip Pipe with Column Dripper, Compensating Emitter 3

16mm PE Drip Pipe with Column Dripper, Compensating Emitter 4

16mm PE Drip Pipe with Column Dripper, Compensating Emitter 5

16mm PE Drip Pipe with Column Dripper, Compensating Emitter 6

16mm PE Drip Pipe with Column Dripper, Compensating Emitter 7

16mm PE Drip Pipe with Column Dripper, Compensating Emitter

Place of Origin:

China

Samples:

$50.0/meter | Min. order : 1 meter

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-100000(meters):31(days),>100000(meters):To be negotiated(days)

Customization:

Graphic customization (Min. Order: 50000 sets),Customized logo (Min. Order: 50000 sets),Customized packaging (Min. Order: 50000 sets)

model number:

GJ16

brand name:

HYRT

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Fitting Size

thinkness

0.6mm 0.8mm 1.0mm

flowing

1.6L 2.0L

spacing

15cm 20cm 30cm 40cm 50cm

plastic type

Payment condition

paypal bank transfer trade insurance

diameter

1/2''

garden hose reel type

Hose Reels

Certificate

ISO9001:2008

feature

Soft, Adjustable, Anti-Uv

package

500M

bar

1.0-3.0mpa

Color

black

Standard

JIS

MOQ

2000

Application

irrigating, Agricultural, Lawn

Product name

Drip Irrigation pipe

material

Plastic

place of origin

Shandong, China

type

Garden Hose Reels

Reliable Drip, Easy Installation

Save water, fertilizer and labour with a 16mm PE drip pipe featuring compensating column drippers that deliver over 95% uniformity and an embedded labyrinth design for self-cleaning, anti-clogging performance. Made from high-strength, corrosion- and aging-resistant materials with selectable flows (1.5–10 L/h) and multiple wall thicknesses (0.3–2 mm), it adapts to diverse crops and irrigation environments. Available Ungrouped or custom-packed in compact rolls, the low-profile column dripper shape and strict factory quality control make handling, installation and long-term reliable operation simple.

16mm PE Compensating Dripper

The 16mm PE drip pipe with column dripper uses an embedded labyrinth throttle and a compensating "constant flow path" emitter to create turbulent, self-cleaning flow and deliver effluent uniformity above 95%. Constructed from high-strength, corrosion- and aging-resistant PE, it offers selectable flows (about 1.5–10 L/h in multiple calibers) and wall thicknesses from 0.3–2 mm, adapting to different irrigation environments and easing filtration requirements to around 80 mesh. Designed to save water, fertilizer and labor while improving crop yield and soil structure, its precise, Ungrouped emitter performance and uniform delivery provide measurable economic and agronomic benefits.

16mm PE Pressure-Compensating Dripper

Ungrouped 16mm PE drip pipe with column dripper features an embedded labyrinth compensating emitter that creates turbulent flow for self-cleaning and anti-clogging performance, allowing filtration down to 80 mesh and delivering over 95% uniformity. Available in flow rates from 1.5 to 10 L/h and wall thicknesses of 0.3–2 mm, the high-strength, corrosion- and aging-resistant PE material adapts to diverse irrigation environments. This compensating emitter system saves water, fertilizer, and labor while improving crop yield and preserving soil structure for reliable water-saving agriculture.

◎

Uniform Water‑Saving Pressure‑Compensating Irrigation

Crafted by a specialist irrigation brand, the 16mm PE drip pipe with column dripper and compensating emitter is manufactured from UV-stable, high-density polyethylene for long-term durability, and its Ungrouped layout permits flexible emitter placement to suit varied crop spacing. The compensating column dripper delivers pressure-compensated, clog-resistant flow for uniform watering across slopes and long runs, cutting water use and maintenance needs. Key features and advantages include easy-cut 16mm tubing, precise flow regulation, simple insertion fittings for fast installation and repairs, plus chemical and UV resistance for reliable, water-efficient performance in gardens, orchards, and commercial landscapes.

Material introduction

The 16mm PE drip pipe is molded from high-density polyethylene and advanced polymer blends to provide high strength, corrosion resistance, and excellent aging resistance for reliable field performance. Its embedded labyrinth throttle and compensating column emitter create turbulent self-cleaning flow and maintain over 95% uniform discharge while tolerating filtration down to 80 mesh. Available in Ungrouped options with wall thicknesses from 0.3 to 2 mm and flow rates from 1.5 to 10 L/h, the system adapts to diverse irrigation environments and conserves water and fertilizer.

◎ UV-Stable High-Density

◎ Compensating Labyrinth Emitter

◎ Chemical-Resistant Field-Proof

FAQ

What is a 16mm PE drip pipe with column dripper and compensating emitter, and what are its main advantages?

It is a small-diameter polyethylene dripline that has built-in column-style emitters designed to be pressure-compensating. The main advantages are uniform discharge along the line despite moderate pressure differences or slight elevation changes, high water- and nutrient-use efficiency, easy installation along rows or beds, and reduced water stress for individual plants.

Which crops and application scenarios are best suited for this product?

Ideal uses include vegetable beds, nursery trays, greenhouse benches, orchards and vineyards (as lateral lines), landscape plantings, and containerized plants. It works especially well where precise point watering is needed or where terrain causes small pressure variations — for example sloped fields, long laterals, or mixed plant spacings.

How should I plan layout and emitter spacing for different crops?

Spacing depends on crop root zone and soil type: closer spacing (e.g., 15–40 cm) for vegetables and closely planted beds, wider spacing (e.g., 0.5–3 m) for trees, vines and shrubs. For uniform coverage, place driplines so emitters target the active root zone. Always follow the manufacturer’s recommended emitter spacing and do a simple hydraulic check for lateral length and available pressure before finalizing the design.

What operating pressure and flow conditions are required, and how does the compensating emitter perform with elevation changes?

Pressure-compensating emitters are designed to deliver nearly constant flow across a specified pressure range, so they tolerate modest pressure variations and minor elevation differences better than non-compensating drippers. Typical low-pressure operation is common in drip systems, but exact working pressure and flow rates vary by product — consult the product datasheet. For large elevation changes or long mains, zone the system or use pressure regulators to ensure correct performance.

How do I prevent clogging and what maintenance is needed?

Good filtration on the water source (screen or disc filters sized to emitter openings) is essential. Regularly flush the lines at end caps, and perform scheduled chemical or mechanical cleaning if water has high solids or biological content. Inspect emitters periodically for fouling and check pressure and flow uniformity. Installing strainers, downstream valves for flushing, and chemical injection for fertigation helps keep emitters clear.

How do I repair leaks or replace sections, and what is the expected service life?

Small leaks or damaged sections can be repaired by cutting out the damaged piece and using barbed or compression couplings, or with repair saddles for quick fixes. If an emitter fails, replace the damaged segment or use an inline repair fitting if compatible. Service life depends on UV exposure, water quality and handling; UV-stabilized PE driplines typically last multiple years (commonly 5–12+ years under normal conditions). To extend life, limit prolonged UV exposure (bury or cover if possible), winterize in freezing climates, and store spare lengths and connectors for quick field repairs.
