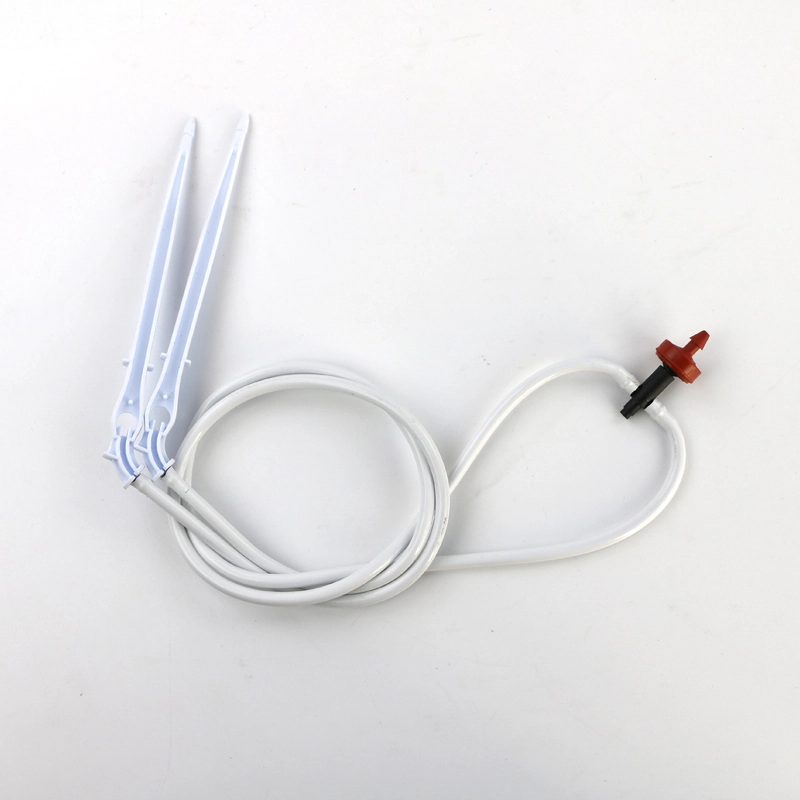

4-Branch Arrow Dripper Kit with 40cm Tubes 2L/4L/8L 1

4-Branch Arrow Dripper Kit with 40cm Tubes 2L/4L/8L 2

4-Branch Arrow Dripper Kit with 40cm Tubes 2L/4L/8L 3

4-Branch Arrow Dripper Kit with 40cm Tubes 2L/4L/8L 4

4-Branch Arrow Dripper Kit with 40cm Tubes 2L/4L/8L 5

4-Branch Arrow Dripper Kit with 40cm Tubes 2L/4L/8L 6

4-Branch Arrow Dripper Kit with 40cm Tubes 2L/4L/8L 7

4-Branch Arrow Dripper Kit with 40cm Tubes 2L/4L/8L

Place of Origin:

China

Brand Name:

HYRT

Model Number:

2142AD

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-100000(pieces):15(days),>100000(pieces):To be negotiated(days)

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Name

Four Branches Bent Arrow Dripper

Working Pressure

0.05-0.2Mpa

Keyword

High Quality Arrow Dripper

Diameter

3/5mm

Certification

ISO9001

Color

Customized

Feature

barbe connector,micro tube fitting

Usage

Water-saving Irrigation System

Place of Origin

Shandong, China

Type

Other Watering & Irrigation

Material

Plastic,POM

Flow rate

4*1.5 L/H

Application

Gardening, Farm, Agriculture Garden Watering Irrigation

Product name

Drip Irrigation Four Branches Arrow Dripper With 40cm Tube

Efficient, Durable, Compact, Adjustable

The 4-Branch arrow dripper with 40cm tubes delivers precise, low-pressure watering (4×1.5 L/h) to save water and improve plant health across gardens and agricultural beds. Its bent-arrow shape, durable plastic/POM build, barb connectors and micro-tube fittings provide uniform flow, easy installation and long-lasting, corrosion-resistant performance. Supplied in secure packaging with customizable colors and ISO9001-verified quality, the compact kit supports flexible delivery and simple on-site assembly for both professional and hobby irrigation needs.

Quad Outlet Precision Dripper

The 4-Branch arrow dripper kit features a bent arrow-shaped POM/plastic body with four 40cm micro-tubes and barb connectors, delivering four emitters at 1.5 L/h each and operating reliably within 0.05–0.2 MPa. As a water-saving irrigation component for agriculture and garden watering, this arrow dripper provides precise, low-pressure distribution, ISO9001-backed quality and customizable colors for straightforward system integration. Its compact multi-branch structure ensures uniform water placement, simple connection to drip fittings and tubing, easy maintenance and modular scalability to adapt to varied layouts and flow requirements.

Four Branch Adjustable Flow Dripper

The 4-Branch arrow dripper kit with 40cm tubes delivers precise, water-saving irrigation for gardens and agricultural beds, providing four outlets with a flow rate of 4×1.5 L/H. Made from durable plastic and POM, the bent design includes barb connectors and micro-tube fittings for easy installation and compatibility with 2L/4L/8L systems. Operating at 0.05–0.2 MPa and ISO9001-certified, this compact dripper optimizes water distribution for efficient drip irrigation setups.

◎ product nicety 1

◎ product nicety 2

◎ product nicety 3

Precise Efficient Durable Reliable

Crafted by a precision irrigation brand committed to sustainable gardening, the 4-branch arrow dripper kit with 40cm tubes and selectable 2L/4L/8L flow options uses durable UV-stable plastics and leak-resistant fittings for reliable long-term performance. The arrow dripper design delivers targeted micro-irrigation to individual plants with consistent drip rates, adjustable flow and clog-resistant filters, reducing water waste while promoting healthier root development. Features include four 40cm flexible tubes, quick-connect fittings and multiple capacity settings; advantages are tool-free installation, uniform watering across pots or beds, scalability and low maintenance.

Material introduction

The 4-Branch arrow dripper uses a precision-molded POM (polyoxymethylene) dripper body combined with durable plastic tubing and barbed connectors for reliable, low-pressure drip delivery. POM’s excellent wear resistance and dimensional stability help the arrow dripper resist abrasion, deformation, and common agricultural chemicals, while the flexible 40 cm micro-tubes make installation and routing simple. Corrosion-free, lightweight materials provide a long service life and support efficient water-saving irrigation with minimal maintenance.

◎ 2L Variant

◎ 4L Variant

◎ 8L Variant

FAQ

What is the 4-Branch Arrow Dripper Kit with 40cm Tubes 2L/4L/8L and what comes in the package?

The kit is a small multi-outlet drip irrigation assembly designed to split one feed into four individual drips using 40 cm (approx. 16 in) flexible tubes. Typical packages include a 4-branch manifold (arrow-style connector), four pre-cut 40 cm tubes, four drip nozzles/emitters available in three flow options (commonly 2 L/h, 4 L/h, or 8 L/h), and fittings to connect to a standard distribution line or garden hose. It’s meant for low-pressure drip systems for containers, hanging baskets, raised beds and small garden rows.

How do I install the kit and what plumbing does it connect to?

Installation is simple: connect the kit’s inlet to your main distribution line (usually 4–8 mm micro tubing or a barbed 1/4" connector to a larger supply line), stably place or stake the manifold, run the four 40 cm tubes to the plant positions, and push the emitters into the soil at each plant base. No special tools are required beyond scissors to trim tubing and possibly an adapter to match your mainline. It works with low pressure (typical drip system pressure 0.5–2.0 bar / 7–30 psi); if your mains pressure is high, add a pressure regulator and filter upstream.

Which flow rate (2L / 4L / 8L) should I choose for my plants and scenarios?

Choose based on plant water needs and container size: 2 L/h emitters suit small pots, seedlings, succulents and moisture-sensitive plants; 4 L/h is good for medium-sized containers, vegetable seedlings, or individual shrubs; 8 L/h works for large pots, thirsty vegetables, and fast-draining soils. For a container cluster or long watering cycle, combine multiple emitters per plant or use a higher flow. For fine control in mixed plantings, use lower-rate emitters and extend watering time or use different emitters on different branches.

What are common application scenarios and best practices for placement?

Use the kit for: individual potted plants and hanging baskets (run tubes into the pot center or near root zones), multi-plant containers and troughs (space tubes evenly), greenhouse benches (one manifold per bench row), raised beds and row crops (place emitters 15–30 cm apart along the row), and balcony gardens. Best practices: position the emitter at or slightly below the soil surface to avoid evaporation, route tubing to avoid tripping, stake tubes in place for stability, and group plants with similar watering needs on the same manifold.

How do I maintain and prevent clogging or uneven flow?

Install a filter at the system inlet to prevent debris. Periodically flush the mainline and manifold by removing the end cap and running water at full pressure for a few seconds. If an emitter clogs, remove it and soak in vinegar or run warm water through it; gently poke with a soft needle if necessary. Check for kinks in the 40 cm tubes and replace brittle tubing every season. Regular inspections (weekly in summer) catch blockages and leaks early.

What troubleshooting tips and how do I use the kit with timers or multiple kits?

If flows are uneven: check for clogged emitters, kinks, or low supply pressure; confirm the correct emitter type is installed. If leaking, re-seat barbed connections and trim tubing ends squarely; use clamps for high-pressure situations. To automate, place the kit downstream of a garden timer and pressure regulator/filter; each manifold can be run from one timer zone. To expand coverage, connect additional manifolds in parallel off the mainline—ensure your water source and tubing size can supply the combined flow and add a valve or zoning if needed.
