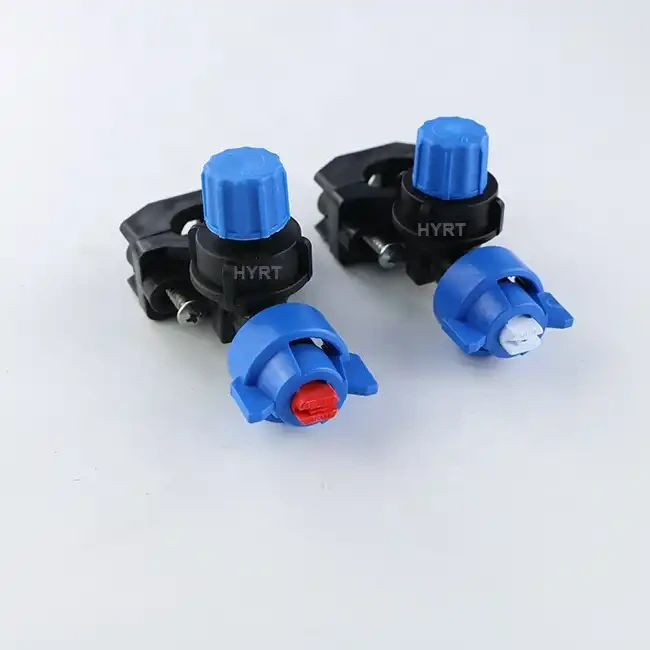

Flat Fan Spray Nozzle for Agricultural Irrigation System 1

Flat Fan Spray Nozzle for Agricultural Irrigation System 2

Flat Fan Spray Nozzle for Agricultural Irrigation System 3

Flat Fan Spray Nozzle for Agricultural Irrigation System 4

Flat Fan Spray Nozzle for Agricultural Irrigation System 5

Flat Fan Spray Nozzle for Agricultural Irrigation System 6

Flat Fan Spray Nozzle for Agricultural Irrigation System 7

Flat Fan Spray Nozzle for Agricultural Irrigation System

Place of Origin:

China

Samples:

$0.85/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1000000(pieces):31(days),>1000000(pieces):To be negotiated(days)

Customization:

Graphic customization (Min. Order: 10000000 sets),Customized logo (Min. Order: 1000000 sets),Customized packaging (Min. Order: 1000000 sets)

model number:

25mm,32mm

brand name:

HYRT

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Flow Rate

0.33-9.24 L/MIN

Advantage

Spray evenly and atomize

Certificate

Ce Iso

Product Name

flat fan spray nozzle

sprinkler type

360 Gear Drive

Diameter

3/4 in

Packing

Carton Box

Color

black and blue

Material

Plastic

Working pressure

2-4 bar

Application

Garden, Agricultural

place of origin

Shandong, China

type

Sprinklers

Uniform Spray, Durable Design

This flat fan nozzle delivers uniform, long-range coverage to maximize irrigation efficiency and reduce water waste. Precision-molded for consistent droplet size and built from durable, corrosion-resistant materials, it ships in professional, eco-friendly, convenient and efficient packaging to ensure safe delivery. Its slim flat shape, selectable spray styles and consistent quality control simplify installation and maintenance for farms and irrigation contractors.

Precision Uniform Water Coverage

The flat fan spray fan nozzle is engineered with a precision-slotted orifice and a durable polymer or stainless-steel body to produce a uniform, low-drift flat fan pattern across a wide pressure range, offering interchangeable sizes and built-in strainers for reliable anti-clog performance and compatibility with standard irrigation fittings. Designed for water- and agrochemical-efficient coverage, it delivers controlled droplet size and lateral distribution to reduce overlap, conserve water and improve crop health while supporting pesticide, fertilizer and moisture applications. Its compact, modular construction—with a replaceable tip and self-cleaning flow path—simplifies maintenance and spare‑parts management, and professional packaging plus dependable delivery ensure quick deployment for growers and irrigation system manufacturers.

Precision Flat Fan Coverage

This flat fan spray nozzle, a high-performance fan nozzle, delivers a consistent, flat spray pattern for efficient water distribution in agricultural irrigation systems. The product is packed using professional, environmentally friendly, convenient, and efficient packaging to better ensure the safety of your goods during delivery. The manufacturer also supplies semi-automatic PET bottle blowing and moulding machines, demonstrating broad production capabilities and strict quality control.

◎ product nicety 1

◎ product nicety 2

◎ product nicety 3

Precision Uniform Coverage Water-Saving

Crafted by a specialist irrigation brand with decades of field-tested expertise, this flat fan spray nozzle is molded from UV-stable, chemical-resistant polymers and precision-drilled to ensure consistent spray geometry and long service life. The fan nozzle delivers uniform, adjustable lateral coverage with a low-drift droplet spectrum and clog-resistant design to maximize water efficiency and crop uniformity. Features like interchangeable tips, color-coded flow rates, corrosion-resistant fittings, and tool-free snap-on installation give farmers reduced maintenance, precise application control, and improved irrigation ROI.

Material introduction

The flat fan spray nozzle, a common fan nozzle type, is molded from corrosion-resistant materials such as high-grade stainless steel and engineering plastics like PVDF or POM, with options for brass fittings and ceramic orifices to keep spray patterns precise. EPDM or Viton seals provide broad chemical and temperature resistance, while smooth, precision-machined surfaces and tight tolerances reduce clogging from fertilizers and suspended solids. These durable material choices extend field service life, support efficient manufacturing, and facilitate environmentally friendly, secure packaging for transport.

◎ material introduction 1

◎ material introduction 2

◎ material introduction 3

FAQ

What is a flat fan spray nozzle and what agricultural tasks is it best suited for?

A flat fan nozzle produces a thin, fan-shaped spray pattern that delivers uniform, narrow-band coverage. It’s commonly used for foliar sprays (fungicides, insecticides, foliar fertilizers), herbicide applications between rows, greenhouse and high-value vegetable spraying, and spot treatments where controlled, even coverage is needed.

What spray angles and droplet sizes are available, and how do I choose the right one for my crop and chemical?

Flat fan nozzles come in several spray angles (typical choices are ~65°, 80°, 90° and 110°) and produce droplet sizes ranging from fine to coarse depending on orifice and operating pressure. Wider angles give broader overlap at the target height; coarser droplets (lower pressure or larger orifice) reduce drift and are preferred for herbicides, while finer droplets improve coverage for fungicides. Choose a combination of angle, orifice size and pressure that matches the product label recommendations and your drift-management needs.

What operating pressure and flow rates should I use, and how do I calibrate the system?

Operating pressure is typically between about 15–60 psi (1–4 bar), with many users running flat fan nozzles at 20–40 psi for a balance of coverage and drift control. Flow rate depends on the nozzle model — always check the manufacturer’s flow chart. Calibrate by measuring nozzle output (collect and measure liquid for a fixed time), calculate L/ha or L/acre at your travel speed and boom spacing, then adjust pressure, speed or nozzle size to hit the target application rate.

How should I position nozzles and set boom height for even coverage?

Position nozzles so adjacent fans overlap at the target spray height — this prevents streaking. Boom height depends on the spray angle; a common practice is to mount nozzles 30–60 cm above the canopy for ground sprayers. Lower heights reduce drift but require narrower coverage; higher heights increase overlap needs. Follow the nozzle manufacturer’s recommended boom spacing and perform a spray pattern check before treating the field.

How do I prevent clogging and maintain flat fan nozzles for long life?

Install proper filtration (inline strainer and nozzle caps). Use filters appropriate to the nozzle size (commonly 100–200 mesh range; consult the manufacturer). Routine maintenance: flush the system after use, remove and rinse nozzles with clean water, clean stubborn debris with a soft brush (avoid metal picks), inspect for wear or fan distortion, and replace nozzles if flow deviates significantly or the pattern degrades. Store nozzles dry and protected from sunlight.

Are flat fan nozzles compatible with all chemicals, and what safety or legal considerations should I follow?

Compatibility depends on nozzle material (polymer, stainless steel, ceramic). Most standard pesticides and fertilizers are fine with polymer or ceramic flat fans, but aggressive solvents or highly corrosive chemicals may require special materials — always check the nozzle chemical-compatibility chart and the chemical product label. Observe pesticide label rates and buffer zones, follow local regulations on drift reduction, wear appropriate PPE, and thoroughly flush the system after applying different products.
