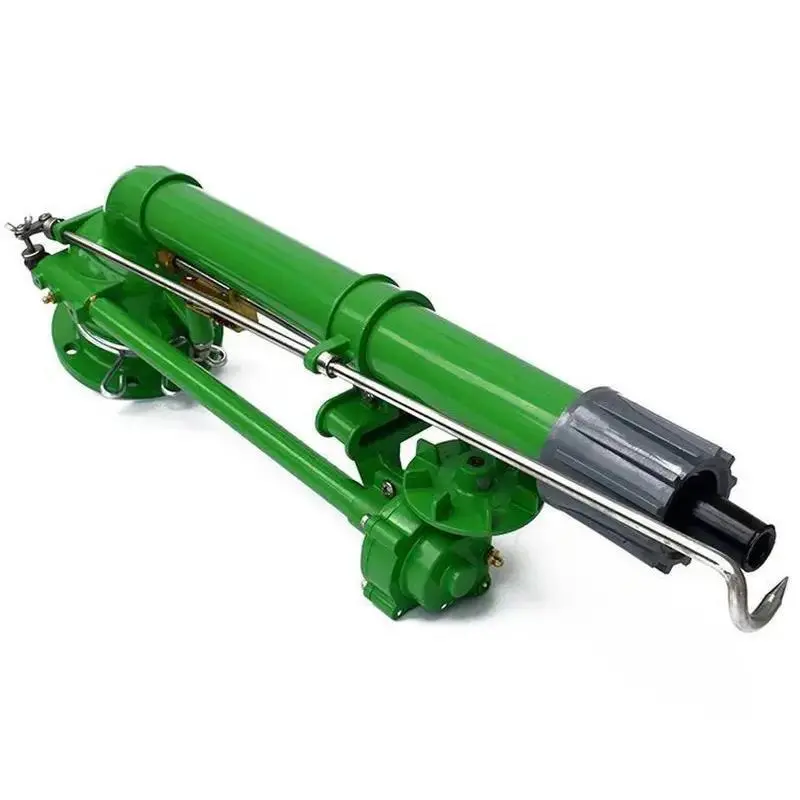

Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 1
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 2
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 3
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 4
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 5
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 6
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 7
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 1
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 2
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 3
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 4
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 5
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 6
Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m 7

Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m

5.0
Place of Origin:
China
Samples:
$161.5/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1000000(pieces):15(days),>1000000(pieces):To be negotiated(days)
design customization

    oops...!

    no product data.

    Go to homepage
    Required Products
    Total price discount:
    nozzle diameter
    16*24mm
    flux
    17.8-75L/min
    pressure
    4-8bar
    Certification
    ISO9001 ,ISO18001,ISO14001,CE
    key selling points
    Remote Monitoring
    warranty
    3 Years
    after-sales service provided
    No after-sales service
    core components
    Pump
    Color
    Green
    Standard
    DIN,BS,ANSI,JIS
    range
    26-53m
    weight
    2
    Application
    automatic irrigation system
    Product name
    rain gun
    place of origin
    China

    Compact Rugged 360° Coverage

    This long-range 360° rotary impact sprinkler with a 53m throw delivers uniform, water-saving coverage for large fields, reducing labor and protecting crop yields. Its corrosion-resistant quality materials, compact industrial style and streamlined shape ensure durable performance and easy installation, while secure packaging protects the unit during shipping. Backed by an experienced irrigation manufacturer with global service support, it integrates smoothly into micro-sprinkler and drip systems and comes with guidance for fast setup and maintenance.

    1620183233g0e
    1620183233oxz

    360° 53m Rotary Sprinkler

    This long-range 360° rotary agricultural rain gun sprinkler reaches up to 53m and pairs a rugged impact sprinkler head with a heavy-duty swing arm and adjustable diffuser to deliver uniform, high-capacity coverage for large fields. Constructed from corrosion-resistant materials with adjustable flow and throw settings, it minimizes water and labor waste while integrating easily into drip, filter, and fertigation systems for versatile farm-scale irrigation efficiency. Engineered for durability and simple maintenance, the 360° rotary design and pressure-stabilizing inlet ensure consistent droplet size and distribution under varying pressures, providing reliable, low-maintenance watering for agriculture, greenhouse, and landscape applications.

    Long-Range 360° Agricultural Sprinkler

    The Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m is a heavy-duty impact sprinkler engineered to deliver uniform irrigation coverage across large fields with a reach of up to 53 meters. Manufactured by Shandong HYRT Water-Saving Irrigation Co., LTD., it uses advanced materials and strict quality control to ensure durable, reliable performance for agriculture, greenhouses, landscapes, and sports turf. Featuring full 360° rotation, adjustable flow and compatibility with drip, filter and fertigation systems, it is backed by a professional design and after-sales team serving customers in more than 60 countries.


    ◎ Extended 53m Reach

    ◎ 360 Degree Rotary

    ◎ Durable Water-Saving Construction

    16201832330io
    1620183233rje

    Maximum Reach, Uniform Coverage

    Built by a heritage agricultural engineering brand focused on durability and field‑tested performance, the Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m impact sprinkler is engineered with precision‑machined components and corrosion‑resistant alloys for season‑after‑season reliability. It delivers full 360° coverage to 53 m with adjustable throw, flow and rotation speed for uniform droplet distribution, efficient water use, and adaptable irrigation patterns across crops and terrains. Key features include a heavy‑duty brass nozzle, stainless‑steel bearings, clog‑resistant inlet, and simple range/angle adjustment; advantages are extended coverage, reduced labor and downtime, consistent crop hydration, and lower operating costs.

    Material introduction

    Built for durability, the Long-Range 360° Rotary Agricultural Rain Gun Sprinkler 53m features a corrosion-resistant brass main body and stainless-steel fasteners to endure harsh field conditions. Critical components such as the rotor and nozzle housing are made from UV-stable, high-strength engineering plastics with reinforced EPDM seals and precision-machined brass or stainless nozzles to resist wear and clogging. Combining metal endurance and polymer resilience, this impact sprinkler delivers reliable, low-maintenance performance for demanding agricultural irrigation.


    ◎ Brass

    ◎ Anodized aluminum

    ◎ Stainless steel (fasteners and bearings)

    1620183233lpr

    FAQ

    1
    What area does the Long-Range 360° Rotary Rain Gun cover and how far can it throw water?
    The unit is rated for a maximum throw of about 53 m (radius) when operated at the specified pressure and nozzle settings. In a full 360° sweep that equates to roughly 8,820 m² (0.88 ha) of theoretical coverage. You can also run it on sectors (part-circle) to irrigate specific blocks — actual coverage depends on pressure, nozzle choice and wind.
    2
    What water pressure and flow do I need to reach the 53 m range?
    Long-range performance requires relatively high pressure and corresponding flow. Typical operating pressures for long-throw rain guns are in the 2.5–5 bar (36–72 psi) range, but exact values depend on the nozzle and model. Flow rate varies by nozzle selection; long throws require much higher discharge than short throws. Always consult the manufacturer nozzle/pressure chart for the exact pressure/flow combination and ensure your pump and supply piping can deliver it.
    3
    How do I install and mount the rain gun in the field?
    The rain gun can be mounted on a fixed pedestal, riser pipe, portable trailer or integrated with a center-pivot/towed system depending on your operation. Key points: use a stable, anchored base to resist torque and vibration; fit correct inlet connection and adequate-diameter supply pipe to avoid pressure loss; install a shut-off valve and filter upstream; orient the unit and set elevation to avoid obstacles. Follow the manufacturer’s installation instructions and local plumbing codes.
    4
    What types of crops and application scenarios is this sprinkler best suited for?
    It’s ideal for large-area agricultural uses where a long throw is needed — e.g., broad-acre row crops, cereals, forage/pasture, orchards (open-canopy), seedbed establishment, and nursery fields. It is also used for dust suppression on construction/mining sites and some frost-protection applications with careful management. It is not well suited to very small gardens, high-precision micro-irrigation, or dense canopy orchards where droplet interception and drift would reduce efficiency.
    5
    How should I operate and adjust the rain gun to get even irrigation and minimize waste?
    Use the correct nozzle and pressure combination for the desired throw and droplet size, set sector stops if you don’t need full 360° coverage, and position guns so throws overlap for even distribution. Avoid running during strong winds (which cause drift) and schedule irrigation for early morning or evening to reduce evaporation. Monitor run time and irrigation depth by using flow/pressure data and soil moisture targets — adjust spacing and duration to match crop water needs.
    6
    What maintenance and troubleshooting steps should I follow to keep the sprinkler working reliably?
    Routine maintenance includes: installing and cleaning upstream filters, flushing the line before first use, inspecting and cleaning nozzles regularly, checking seals and bearings for wear, tightening fittings, and winterizing/draining the system before freezing weather. If you see uneven spray, reduced throw or vibration, check for clogged or worn nozzles, low supply pressure, air in the line, or loose mounts. Always depressurize the line and follow safety procedures before servicing.
