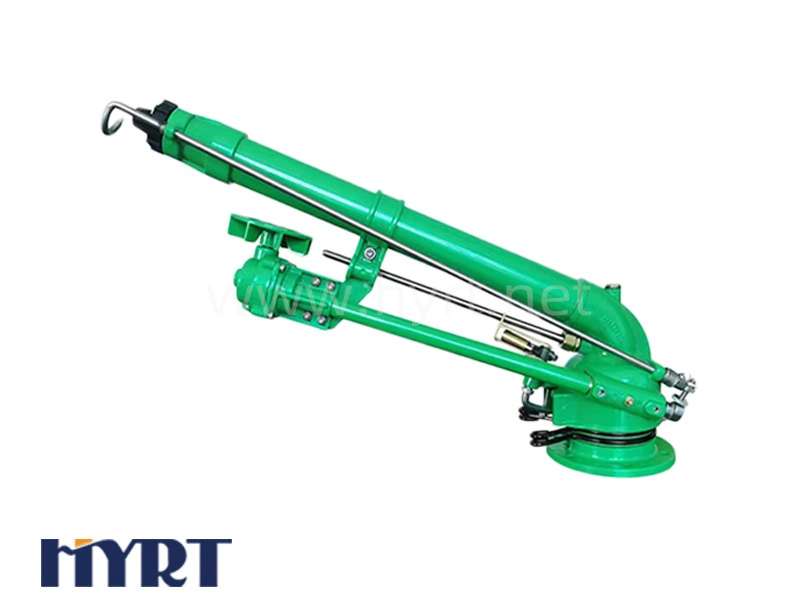

Big Gun P50
Our staff implements 100% inspection to make sure the product is in good conditions and of high quality.
DESCRIPTION
Turbine vortex rod atomizing nozzl，360degree spray irrigationspraying radius: 30m-60Throughthe water flow acting on different positions of the impeller, the forward and reverse rotation can be realized, so as to realize the continuous spraying mode of normal forward and reverse spraying. The spray gun has a long spraying distance, and can rotate at a uniform speed in the way of full circle or partial full circle. During the spraying process, the spray is completely autom atic, uniform and stable, without manual intervention,The pressure resistance, sealing performance and even, stable and reliable operation can meet the requirements of spraying, without causing the loss of water, soil and fertilizer, which is conducive to the growth of crops, the improvement of automation and the promotion of agricultural development.
FEATURES
Good raw materials
Made of high-quality materials and advanced production technology,durable.
Features of the sprinkler head
Water spray evenly,This sprinkler is mainly used for large-scale agricultural sprinkler irrigation in farms, orchards.
Use scenarios
Large-scale gardening sprinkler irrigation and industrial sprinkler irrigation for lawns, greening, gardens.
Big mould production
Directly supplied by the factory, high production capacity, accept customized Packaging.
Life Long
High-quality engineering plastics, strong wear resistance and long service life.
SERIES PRODUCTS
|
产品 Pic |
接口 Connection |
喷嘴直径 Nozzle diameter |
压力 Pressure |
喷射半径 Range |
流量 Flux |
|
HYRT-S50 |
1''F | 2.0-5.0bar | 18-25m | 75-82L/min | |
|
HYRT-S52 |
1''F | 2.0-4.0bar | 20-25m | ||
|
HYRT-S130 |
1''F | 3.5*2.0mm | 2.0-3.0bar | 8-11m | 18-25L/min |
|
HYRT-S49 |
3/4''M |
5.0*3.8mm 5.0*4.0mm 3.8*2.3mm |
1.5-3.5bar | 14.8-19.3m | 15.8-32.1L/min |
|
HYRT-S3 |
1/2''M | 4mm | 0.5-2.5bar | 5-12m | 14.8-28L/min |
|
HYRT-S2 |
1/2''M | 4mm | 0.5-2.5bar | 5-10m | 14.8-28L/min |
|
HYRT-S2-1 |
3/4''M | 4mm | 0.5-2.5bar | 5-10m | 14.8-28L/min |
|
HYRT-S2-2 |
3/4''F | 4mm | 0.5-2.5bar | 5-10m | 14.8-28L/min |
|
HYRT-S35-5022 |
1/2''M | 3.5*2.0mm | 2.0-4.0bar | 10-11m | 14-20.2L/min |
|
HYRT-S18-BS-88 |
3/4''M | 5.0*2.5mm | 3.0-5.0bar | 13-18m | 11.6-41L/min |
|
HYRT-S1160 |
3/4''F | 3.5*2.0mm | 2.0-4.0bar | 7-10m | 18-25L/min |
|
HYRT-S6-R |
3/4''F | 4mm | 2.0-3.5bar | 7.0-10.0m | 7.2-19.4L/min |
|
HYRT-S30-1 |
3/4''M | 5.0*2.5mm | 3.0-5.0bar | 13-18m | 11.6-41L/min |
|
HYRT-S30-2 |
3/4''M 铜喷嘴Brass |
5.0*2.5mm | 3.0-5.0bar | 13-18m | 11.6-41L/min |
|
HYRT-S20 |
3/4''M | 4.5*2.1mm | 2.0-3.0bar | 13.1-15m | 23-28L/min |
|
HYRT-S22 |
3/4''M | 4.5*2.1mm | 2.0*3.0bar | 13.1-15m | 23-28L/min |
|
HYRT-F26W-C |
1/2''M | 2.5*2.5mm | 1.03-4.137bar | 5.0-8.0m | 9.0-13.3L/min |
|
HYRT-S4 |
1/2''M | 4mm | 1.3-3.0bar | 6.0-13.0m | 14.8-28L/min |
|
HYRT-ZY-2-1 |
1''F | 7mm | 0.5-4.0bar | 15-19m | 3-36L/min |
|
HYRT-ZY-2 |
1''F | 7mm | 0.2-0.35bar | 15-19m | 3-36L/min |
|
HYRT-S24 |
3/4''M | 5.0*2.5mm | 0.5-4.0bar | 3.0-16.5m | 6.8-32.4L/min |
|
HYRT-S23 |
3/4''F | 5.0*2.5mm | 0.5-4.0bar | 3.0-16.5m | 6.8-32.4L/min |
|
PY30 PY40 PY50 |
1.5''F 2''F 2.5''F |
10*3.5mm 14*7.5mm 20*3.5mm |
0.3-0.45MPA 0.3-0.4MPA 0.4-0.5MPA |
23-25m 25-30m 30-40m |
7-9m³/h 17-20m³/h 30-35m³/h |
|
HYRT-HS30 |
1.5''F | 8*18mm | 2-6bar | 10-18m | 9.1-31.9L/min |
|
HYRT-P50 |
2''F | 16*24mm | 4-8bar | 26-53m | 17.8-75L/min |
PLANT AREA
|
|
||||
| 30 thousand square meters | Professional Team | Thousands Of Sets Of Molds | ||
| Multiple Shipping Methods | The Annual Output Yalue Exceeds2.5Billion Pieces | Certifications |
CERTIFICATE
●Shandong HYRT water-saving irrigation Co.,LTD.is one of the professional irrigation system manufacturer and servicer in china.
●Our products include micro-sprinkler system,drip irrigation system,filter system,fertilizer system,garden watering kit,tubing and their fittings ect which are all manufactured bythe advanced technology and good quality materials,widely apply in agricultural team of professional staffs in design,technology,sales,customer services amd quality control.
●Our goal:to provide our customer with the best services by not only the strong technology support but also integrity and friendship.
APPLICABLE SCENARIOS
|
Orchard planting |
Vegetable planting |
|
|
Farmland irrigation |
Greenhouse |
