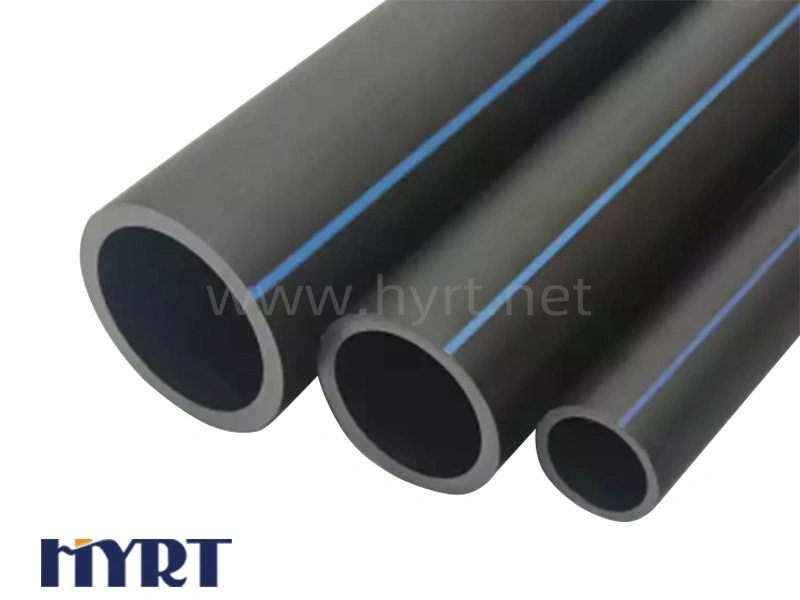

HDPE Pipe
This product delivers optimum efficiency to the users.
DESCRIPTION
Agricultural Drip Irrigation System LDPE/HDPE Pipe for Farm Irrigation
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Good hygiene and environmental performance;
7. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
FEATURES
Good raw materials
Made of first class raw materials and advanced production technology,durable.
Connection
High toughness and good seismic performance,the connection is reliable.
Save time and water
Low density, light weight, easy to handle and install.
Big mould production
Directly supplied by the factory, high production capacity, accept customized Packaging.
Life Long
High-quality engineering plastics, strong wear resistance and long service life.
SERIES PRODUCTS
| HDPE管材米重表Pipe meter weight table | ||||||||||||||||
| 规格 | SDR41 | SDR33 | SDR26 | SDR21 | SDR7 | SDR13.6 | SDR11 | SDR9 | ||||||||
| PE80级公斤压力PE80 kg pressure | ||||||||||||||||
| 0.32Mpa | 0.4Mpa | 0.5Mpa | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | |||||||||
| FE100级公斤压力FE100 kg pressure | ||||||||||||||||
| 0.4Mpa | 0.5Mpa | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 0.6Mpa | 2.0Mpa | |||||||||
| 壁厚 | 米重 | 壁厚 | 米重 | 壁厚 | 米重 | 壁厚 | 米重 | 壁厚 | 米重 | 壁厚 | 米重 | 壁厚 | 米重 | 壁厚 | 米重 | |
| 16 | —— | —— | —— | —— | —— | —— | —— | 2.3 | 0.103 | |||||||
| 20 | —— | —— | —— | —— | —— | —— | 2.3 | 0.133 | 2.3 | 0.133 | ||||||
| 25 | —— | —— | —— | —— | —— | 2.3 | 0.170 | 2.3 | 0.170 | 3.0 | 0.216 | |||||
| 32 | —— | —— | —— | —— | 2.3 | 0.223 | 2.4 | 0.232 | 3.0 | 0.283 | 3.6 | 0.334 | ||||
| 40 | —— | —— | —— | 2.3 | 0.283 | 2.4 | 0.295 | 3.0 | 0.362 | 3.7 | 0.437 | 4.5 | 0.522 | |||
| 50 | —— | —— | 2.3 | 0.358 | 2.4 | 0.373 | 3.0 | 0.460 | 3.7 | 0.559 | 4.6 | 0.676 | 5.6 | 0.812 | ||
| 63 | —— | —— | 2.5 | 0.494 | 3.0 | 0.588 | 3.8 | 0.735 | 4.7 | 0.895 | 5.8 | 1.076 | 7.1 | 1.635 | ||
| 75 | —— | —— | 2.9 | 0.683 | 3.6 | 0.839 | 4.5 | 1.031 | 5.6 | 1.265 | 6.8 | 1.508 | 8.4 | 1.827 | ||
| 90 | —— | —— | 3.5 | 0.989 | 4.3 | 1.203 | 5.4 | 1.493 | 6.7 | 1.819 | 8.2 | 2.178 | 10.1 | 2.635 | ||
| 110 | —— | —— | 4.2 | 1.454 | 5.3 | 1.802 | 6.6 | 2.214 | 8.1 | 2.685 | 10.0 | 3.234 | 12.3 | 3.924 | ||
| 125 | —— | —— | 4.8 | 0.888 | 6.0 | 2.318 | 7.4 | 2.838 | 9.2 | 3.455 | 11.4 | 4.204 | 14.0 | 5.075 | ||
| 140 | —— | —— | 5.4 | 2.379 | 6.7 | 2.917 | 8.3 | 3.555 | 10.3 | 4.337 | 12.7 | 5.246 | 15.7 | 6.373 | ||
| 160 | —— | —— | 6.2 | 3.113 | 7.7 | 3.817 | 9.5 | 4.653 | 11.8 | 5.671 | 14.6 | 6.869 | 17.9 | 8.306 | ||
| 180 | —— | —— | 6.9 | 3.897 | 8.6 | 4.788 | 10.7 | 5.898 | 13.3 | 7.184 | 16.4 | 8.842 | 20.1 | 10.496 | ||
| 200 | —— | —— | 7.7 | 4.822 | 9.6 | 5.949 | 11.9 | 7.262 | 14.7 | 8.847 | 18.2 | 10.913 | 22.4 | 12.991 | ||
| 225 | —— | —— | 8.6 | 6.049 | 10.8 | 7.534 | 13.4 | 9.223 | 16.6 | 11.439 | 20.5 | 13.814 | 25.2 | 16.442 | ||
| 250 | —— | —— | 9.6 | 7.518 | 11.9 | 9.202 | 14.8 | 11.316 | 18.4 | 14.072 | 22.7 | 17.023 | 27.9 | 20.236 | ||
| 280 | —— | —— | 10.7 | 9.398 | 13.4 | 11.631 | 16.6 | 14.480 | 20.6 | 17.671 | 25.4 | 21.325 | 31.3 | 25.240 | ||
PLANT AREA
|
|
||||
| 30 thousand square meters | Professional Team | Thousands Of Sets Of Molds | ||
| Multiple Shipping Methods | The Annual Output Yalue Exceeds2.5Billion Pieces | Certifications |
CERTIFICATE
●Shandong HYRT water-saving irrigation Co.,LTD.is one of the professional irrigation system manufacturer and servicer in china.
●Our products include micro-sprinkler system,drip irrigation system,filter system,fertilizer system,garden watering kit,tubing and their fittings ect which are all manufactured bythe advanced technology and good quality materials,widely apply in agricultural team of professional staffs in design,technology,sales,customer services amd quality control.
●Our goal:to provide our customer with the best services by not only the strong technology support but also integrity and friendship.
APPLICABLE SCENARIOS
|
Orchard planting |
Vegetable planting |
|
|
Farmland irrigation |
Greenhouse |
The product, inspected throughout the production, is sure to be of high quality.
