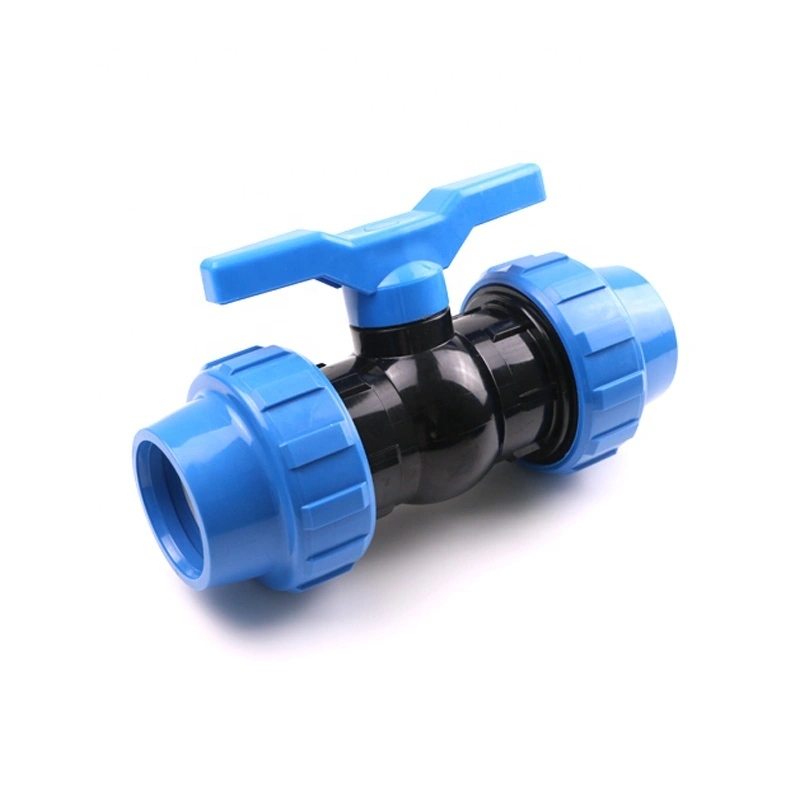

32mm PN16 PP Irrigation Compression Quick-Connect Ball Valve

Place of Origin:

China

Samples:

$1621.51/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10000000(pieces):31(days),>10000000(pieces):To be negotiated(days)

Customization:

Graphic customization (Min. Order: 100000 sets),Customized logo (Min. Order: 100000 sets),Customized packaging (Min. Order: 100000 sets)

model number:

141020-141110

brand name:

HYRT

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Diameter

1/2 in

Certification

ISO9001

Packing

Carton Box

Color

Black and blue

Standard

DIN,BS,ANSI,JIS

MOQ

10pcs

Feature

Easy Installation

Usage

Water-saving Irrigation System

Commercial Buyer

E-commerce Stores

Size

20-110mm

Application

Gardening, Farm, Garden, Agricultural, Vegetable, Irrigation, Greenhouse, garden watering, garden irrigation, Watering, Drip irrigation system, drip irrigation, agricultural irrigation system, farmland irrigation, water-saving irrigation system, irrigation pipe, agriculture drip irrigation, CONNECT, garden agriculture, plant watering, fertilization, Water Hose, garden supplies, Agricultural Farmland Irrigation System

material

Plastic

place of origin

Shandong, China

type

Other Watering & Irrigation

Compact Design Leakproof Durability

The 32mm PN16 PP irrigation compression quick-connect ball Valves provide drinking-water-safe, corrosion-resistant flow control with PN16 pressure performance and a long service life. Their compact quick‑connect shape, light-color finish and lightweight PP construction ensure easy, low-cost installation, excellent heat and sound insulation, and suitability for exposed or hidden pipelines, all packed in international export packaging. HYRT offers customizable pipeline solutions, fast delivery within 15 days and strict quality checks so customers get water-saving, low‑maintenance Valves for agricultural and hydraulic systems.

Durable 32mm PN16 Quick-Connect

The 32mm PN16 PP irrigation compression quick-connect ball Valves are manufactured from food-grade polypropylene, rated to 16 bar at 20 °C for 20–63mm sizes, and deliver corrosion resistance, high impact strength and low thermal conductivity suitable for drinking-water systems. Their compression quick‑connect design and ball‑valve mechanism provide fast, reliable, leak‑free on/off control with tool‑free installation, lightweight handling and a long service life that lowers construction costs and supports customizable irrigation layouts. Structurally optimized for irrigation use, these eco‑friendly Valves offer sound and heat insulation, attractive color options for exposed or concealed piping, and come with manufacturer support, competitive pricing and flexible shipping for rapid deployment.

32mm PP Quick-Connect Valve

Valves in this range, such as the 32mm PN16 PP quick-connect ball valve, are made of eco-friendly polypropylene and comply with drinking water standards while offering excellent impact and heat resistance. The compression connection ensures convenient, reliable, leak-free installation with lightweight handling, good sound insulation and a long service life, available in blue or black. Ideal for irrigation, drinking water and hydraulic systems, these fittings are offered by the manufacturer with customization and fast delivery to meet site requirements.

◎ product nicety 1

◎

Reliable Leak Free Control

Built by a heritage manufacturer devoted to reliable irrigation components, the 32mm PN16 PP Irrigation Compression Quick-Connect Ball Valve is precision-molded from reinforced polypropylene with CNC-machined seats and EPDM seals to ensure consistent, corrosion- and UV-resistant performance. These Valves combine a true ball design for full-bore flow and quick-connect compression fittings for tool-free installation, while the PN16 rating guarantees robustness up to 16 bar for demanding irrigation systems. Key features and advantages include lightweight chemical resistance, low-maintenance operation, fast leak-proof hookups, and cost-effective durability that reduce installation time and long-term maintenance costs.

Material introduction

The 32mm PN16 PP irrigation compression quick-connect ball Valves are molded from high-grade polypropylene, offering corrosion resistance, food-safe compliance for drinking water, and excellent impact strength for long service life. The PP material maintains dimensional stability at elevated temperatures, provides low thermal conductivity and effective sound insulation, and keeps the assembly lightweight for easy transport and installation. With an eco-friendly composition, quick compression connections and reliable sealing, these Valves deliver leak-free operation up to 16 bar under typical conditions and suit both exposed and concealed irrigation systems.

◎ material introduction 1

◎ material introduction 2

◎ material introduction 3

FAQ

What irrigation systems and pipe types is the 32mm PN16 PP compression quick-connect ball valve compatible with?

The valve is designed primarily for 32mm supply lines in irrigation systems — typically 32mm PE/MDPE irrigation pipe and similar OD plastic pipe. Compression quick-connect fittings also work with some PVC or PEX pipes if the outer diameter and wall thickness match the fitting specifications. Always check the pipe OD, wall type and the manufacturer’s compatibility list before installation.

What do PN16 and PP mean for practical use — what are the pressure and temperature limits?

PN16 indicates a nominal pressure rating of 16 bar (1600 kPa) at the reference temperature for the valve material. In practice irrigation systems operate at much lower pressures (usually under 6 bar), so the valve is more than adequate for typical drip, sprinkler and mainline use. Made of polypropylene (PP), the valve is suitable for cold to moderately warm water; typical operating temperatures are roughly -10°C to +60°C. Avoid continuous exposure to high temperatures or steam, and check the product datasheet for exact limits.

How do I install the compression quick-connect ball valve correctly?

Cut the pipe square, remove burrs and debris, and ensure the pipe end is clean and round. Slide the compression nut (and olive/sleeve if provided) onto the pipe, insert the pipe firmly into the valve until it bottoms out, then hand-tighten the nut and finish with a wrench if needed — don’t over-tighten. Make sure the valve is oriented correctly (flow direction if marked) and support the pipeline so there is no strain on the fitting. Follow the manufacturer’s installation instructions and test at low pressure before full operation.

Can this valve be used for fertigation, pesticides or chemical dosing in irrigation?

PP is chemically resistant to many commonly used fertilizers and agricultural solutions, so the valve is frequently used in fertigation systems. However, chemical compatibility depends on the specific chemical and its concentration; some solvents or highly aggressive chemicals may attack PP or the seal materials. Confirm compatibility for your exact fertilizer/chemical and consider the recommended seal material (EPDM, NBR, FKM, etc.) — if in doubt, consult the datasheet or supplier.

What routine maintenance or winterization is required for long-term performance?

Minimal maintenance is needed: operate the valve periodically to prevent seizing, inspect for leaks or external damage, and replace worn seals if necessary. Before winter or freezing conditions, drain the valve and lines to prevent ice damage or remove and store valves in a frost-free place. Protect PP valves from prolonged direct UV exposure if they are not UV-stabilized (use covers or bury/insulate where practical).

What are common problems I may encounter and how do I troubleshoot them?

Common issues and fixes: (1) Leak at compression nut — check pipe insertion depth, tighten nut (avoid overtightening), and replace the O-ring/olive if damaged. (2) Leakage through the ball seat — flush debris from the line, cycle the valve, and if seats are damaged replace the valve or seat parts. (3) Stiff or stuck handle — debris or scale buildup; depressurize, disassemble, clean and lubricate appropriate components. (4) Poor flow — check for partially closed valve, internal blockage, or undersized piping upstream. If problems persist, refer to manufacturer support or replace the valve.
